HyperNet
MPO-8 to MPO-8 OM4 Multimode 400G Fiber Patch Cable
MPO-8 to MPO-8 OM4 Multimode 400G Fiber Patch Cable
Normaler Preis
$0.00 USD
Normaler Preis
Verkaufspreis
$0.00 USD
Request a Quote
Project pricing only. Please include quantity, required length, connector configuration, polarity, jacket rating, and destination country.
Product reference: MPO-8 to MPO-8 OM4 Multimode 400G Fiber Patch Cable / HN-MPO8-MPO8-OM4-400G
Anzahl
Verfügbarkeit für Abholungen konnte nicht geladen werden
B2B RFQ product. This item is supplied to project requirements and is not sold at a fixed online price.
An OM4 multimode MPO-8 patch cable for short-reach 400G links in AI clusters, HPC systems, and high-density data centers.
Key Features
- Eight active OM4 multimode fibers
- MPO/APC female connectors at both ends
- Type B polarity with key-up to key-up orientation
- Low insertion loss for high-speed multimode links
- Magenta 3.0 mm cable and custom length options

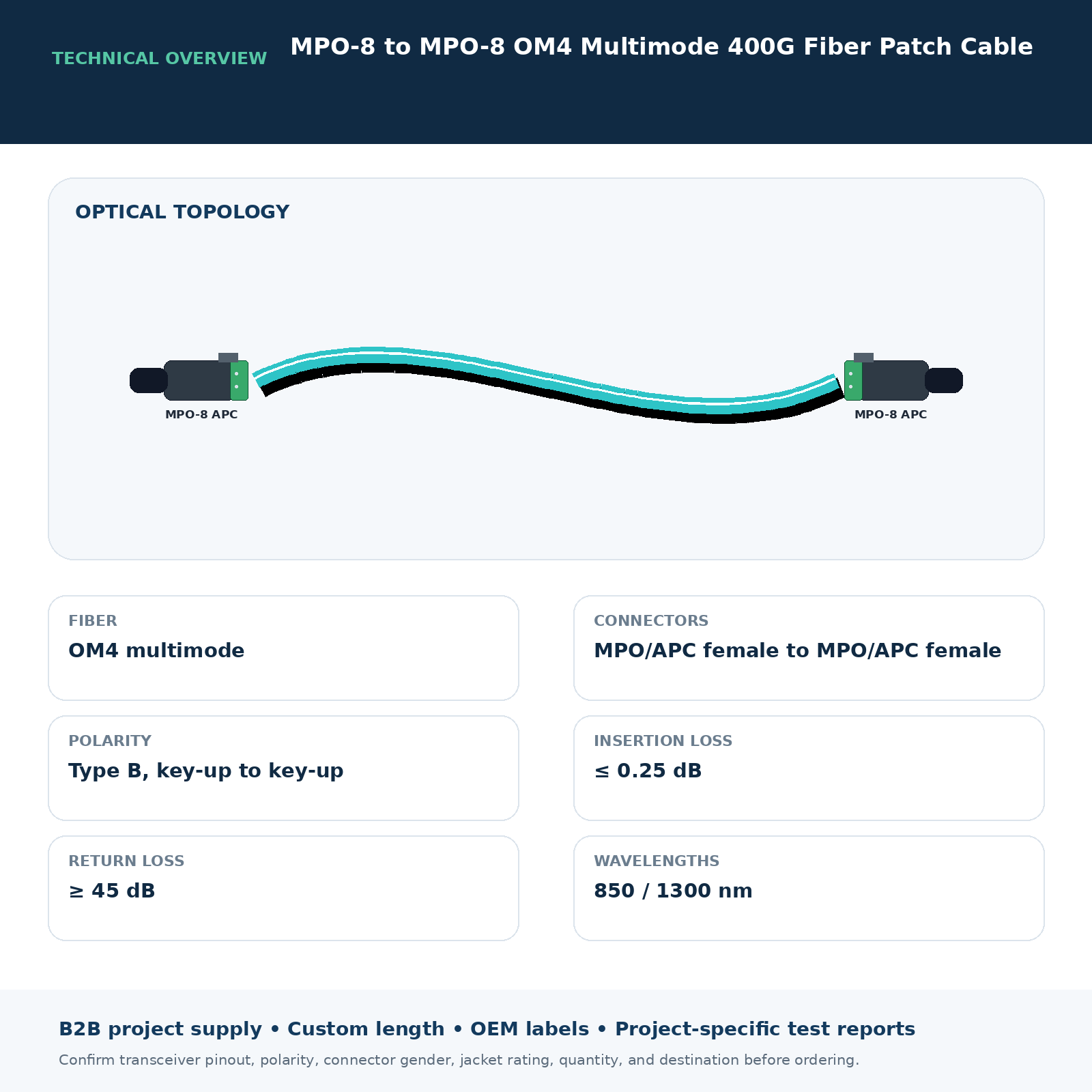

Technical Specifications
| Fiber type | OM4 multimode |
|---|---|
| Active fiber count | 8 |
| Connector A | 12-fiber MPO/APC female housing, 8 active fibers |
| Connector B | 12-fiber MPO/APC female housing, 8 active fibers |
| Polarity | Type B, key-up to key-up |
| Cable | 3.0 mm, magenta |
| Insertion loss | <= 0.25 dB |
| Return loss | >= 45 dB |
| Test wavelengths | 850 nm and 1300 nm |
| Reference reach | Up to 50 m in the referenced application |
Typical Applications
- 400G multimode switch-to-switch links
- AI and HPC cluster interconnects
- Short-reach data-center optical cabling
Ordering Information
Please specify required length, quantity, polarity, connector gender, jacket requirement, labels, and destination country. OEM labeling, custom packaging, and project-specific test reports are available on request.
