288-Fiber OM4 36x400G MPO-8 High-Density Trunk Cable
288-Fiber OM4 36x400G MPO-8 High-Density Trunk Cable
Project pricing only. Please include quantity, required length, connector configuration, polarity, jacket rating, and destination country.
Product reference: 288-Fiber OM4 36x400G MPO-8 High-Density Trunk Cable / HN-TRUNK-288F-36X400G-OM4-MPO8
No se pudo cargar la disponibilidad de retiro
B2B RFQ product. This item is supplied to project requirements and is not sold at a fixed online price.

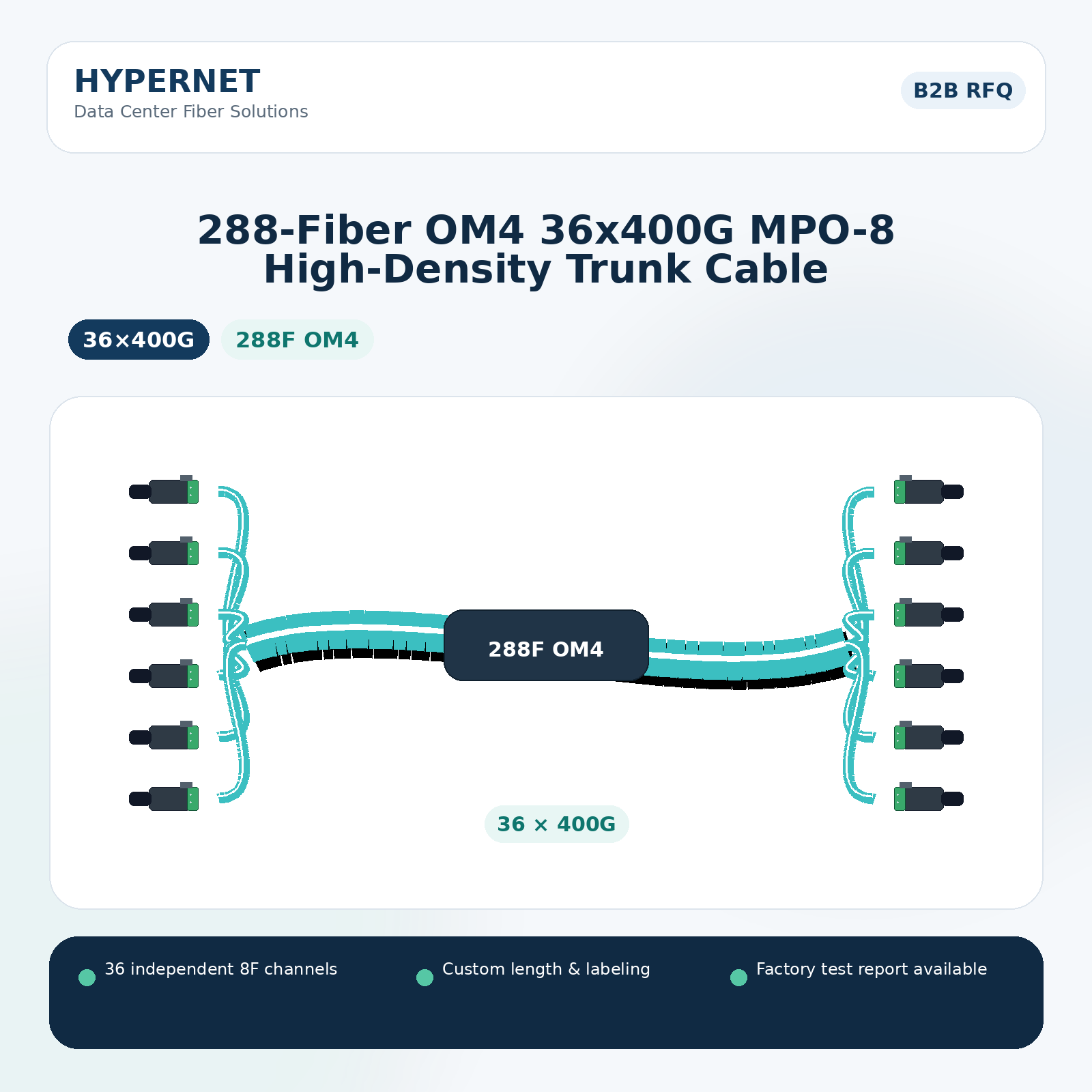

A 288-fiber OM4 trunk that consolidates thirty-six independent 400G MPO-8 channels into one factory-terminated backbone assembly for rapid data-hall deployment.
Key Features
- 288 OM4 fibers organized as 36 x 8-fiber channels
- Thirty-six MPO-8 APC male connectors at each end
- ANSI/TIA-568.3-D Type B polarity
- Aqua OFNR main cable with color-coded breakout legs
- Factory labeling, serial-number control, and test reporting

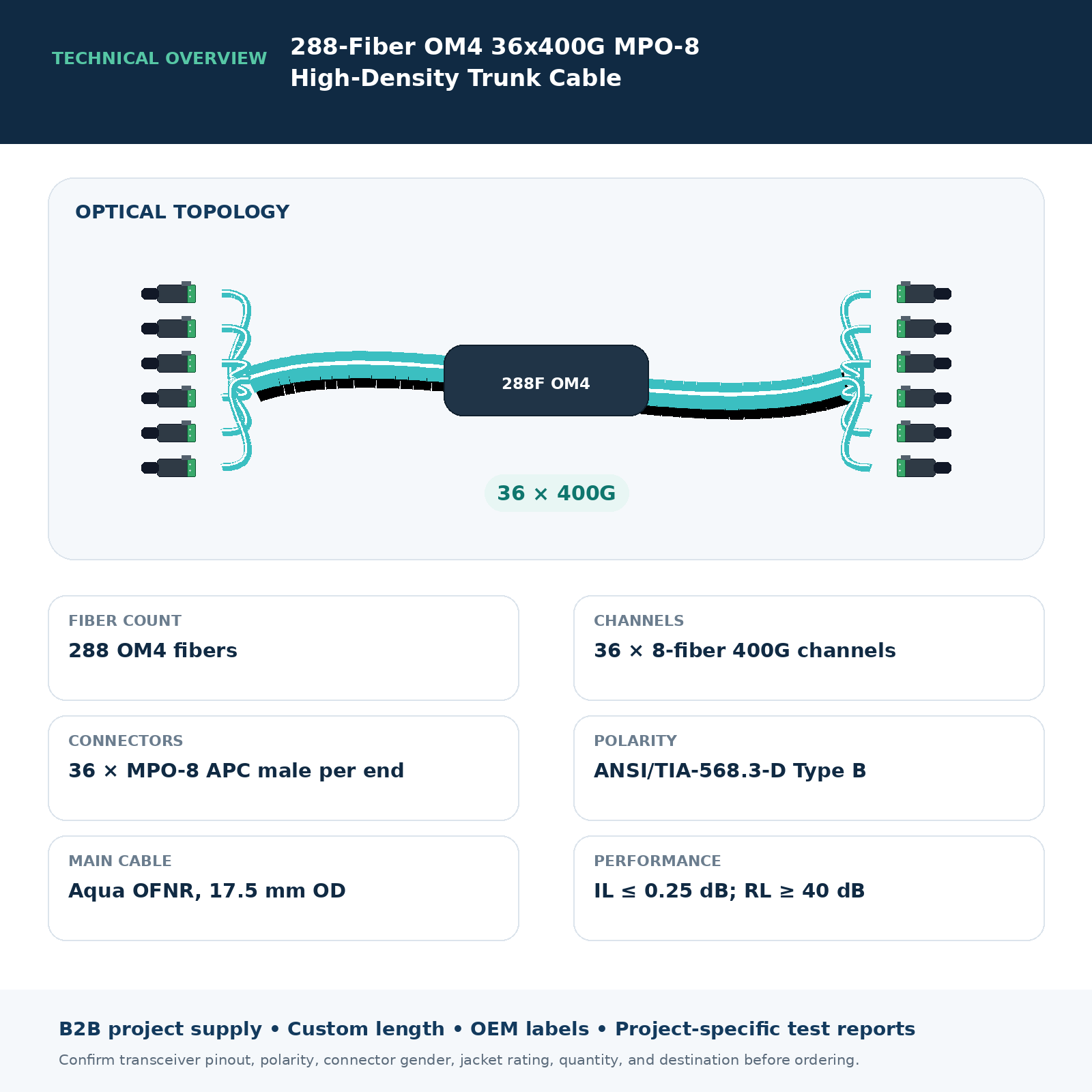

Technical Specifications
| Fiber type | OM4 multimode |
|---|---|
| Total fiber count | 288 |
| Channel count | 36 x 8-fiber 400G channels |
| Connector configuration | 36 x MPO-8 APC male per end |
| Main cable | 17.5 mm OD, aqua OFNR |
| Breakout legs | 36 x 2.0 mm 8-fiber legs per end |
| Polarity | ANSI/TIA-568.3-D Type B |
| Insertion loss | <= 0.25 dB |
| Return loss | >= 40 dB |
| Test wavelengths | 850 nm and 1300 nm |
| Compliance reference | IEC 61300-3-35 end-face criteria; RoHS 2011/65/EU materials |
Typical Applications
- High-density 400G backbone cabling
- AI data halls and GPU clusters
- Spine-leaf and switch-to-patch-panel infrastructure
Ordering Information
Please specify overall length, breakout length, connector sequence, quantity, OFNR or alternate jacket, labels, test-report format, and destination country. OEM labeling, custom packaging, and project-specific test reports are available on request.
