MPO-16 APC to 2x MPO-8 PC OM4 400G to 2x200G RoCE Breakout Cable
MPO-16 APC to 2x MPO-8 PC OM4 400G to 2x200G RoCE Breakout Cable
Project pricing only. Please include quantity, required length, connector configuration, polarity, jacket rating, and destination country.
Product reference: MPO-16 APC to 2x MPO-8 PC OM4 400G to 2x200G RoCE Breakout Cable / HN-MPO16-2MPO8-OM4-400G-2X200G-ROCE
픽업 사용 가능 여부를 로드할 수 없습니다.
B2B RFQ product. This item is supplied to project requirements and is not sold at a fixed online price.

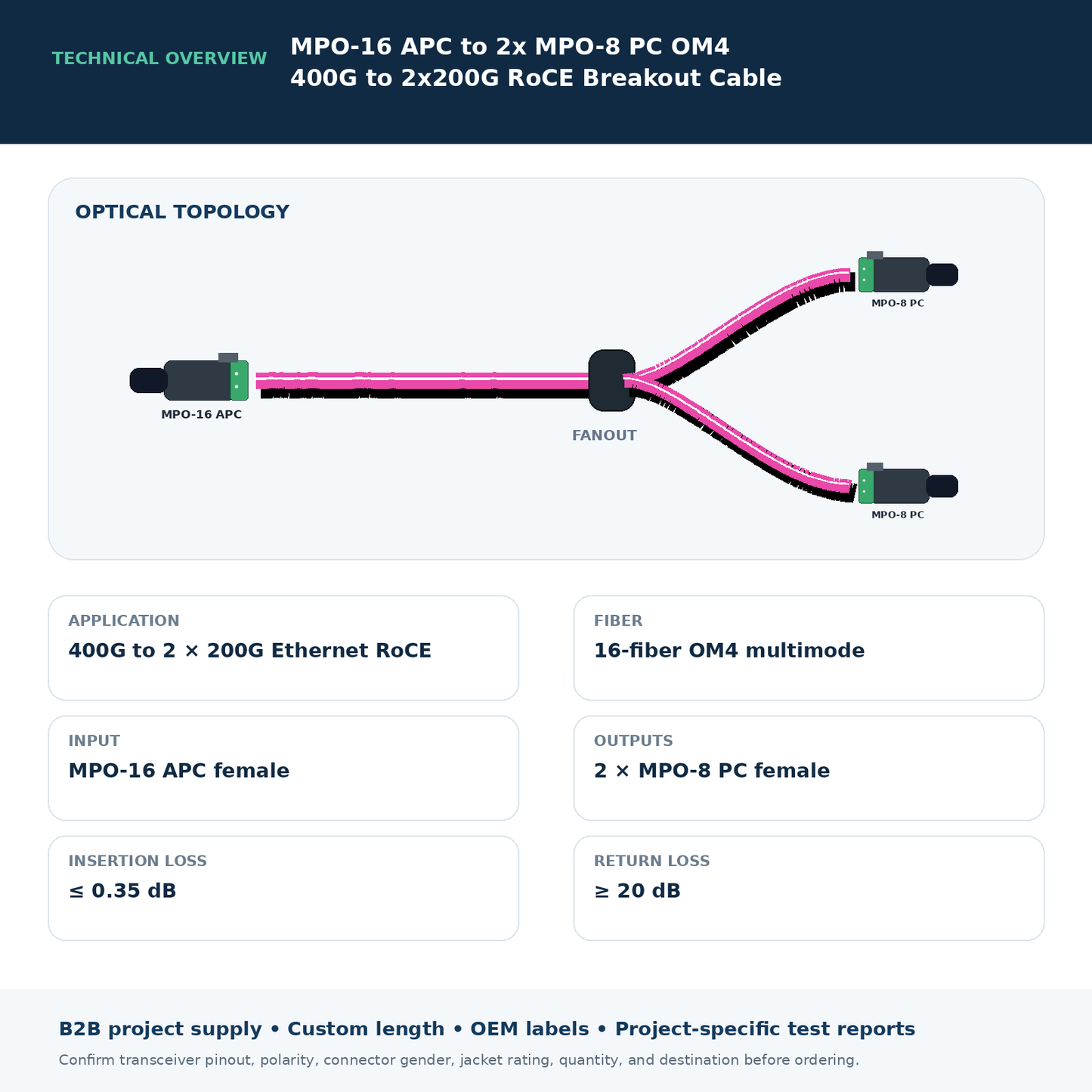

A hybrid-polish OM4 breakout cable that converts one 400G MPO-16 interface into two 200G MPO branches for Ethernet RoCE applications.
Key Features
- MPO-16 APC female input connector
- Two MPO-8 PC female output connectors
- OM4 multimode 16-fiber construction
- Hybrid 8-degree APC to 0-degree PC interface design
- Custom overall and branch lengths available
Technical Specifications
| Function | 400G to 2 x 200G Ethernet RoCE breakout |
|---|---|
| Fiber type | OM4 multimode |
| Input connector | MPO-16 APC female, aqua housing |
| Output connectors | 2 x MPO-8 PC female, aqua housing |
| Input polish | APC, 8-degree |
| Output polish | PC, 0-degree |
| Cable | 3.0 mm, magenta |
| Reference branch length | 500 mm +50/-0 |
| Insertion loss | <= 0.35 dB |
| Return loss | >= 20 dB |
Typical Applications
- 400G to dual 200G Ethernet RoCE links
- AI training and storage fabrics
- High-density switch breakout cabling
Engineering note: The source slide states APC input, PC outputs, IL <=0.35 dB, and RL >=20 dB; it does not state test wavelengths.
Ordering Information
Please specify overall length, branch length, quantity, lane map, polish configuration, labels, and destination country. OEM labeling, custom packaging, and project-specific test reports are available on request.
