192-Fiber Single-Mode 24x MPO-8 APC to 96x Duplex LC Trunk Cable
192-Fiber Single-Mode 24x MPO-8 APC to 96x Duplex LC Trunk Cable
Project pricing only. Please include quantity, required length, connector configuration, polarity, jacket rating, and destination country.
Product reference: 192-Fiber Single-Mode 24x MPO-8 APC to 96x Duplex LC Trunk Cable / HN-TRUNK-192F-24MPO8-96DLC-SM
Couldn't load pickup availability
B2B RFQ product. This item is supplied to project requirements and is not sold at a fixed online price.

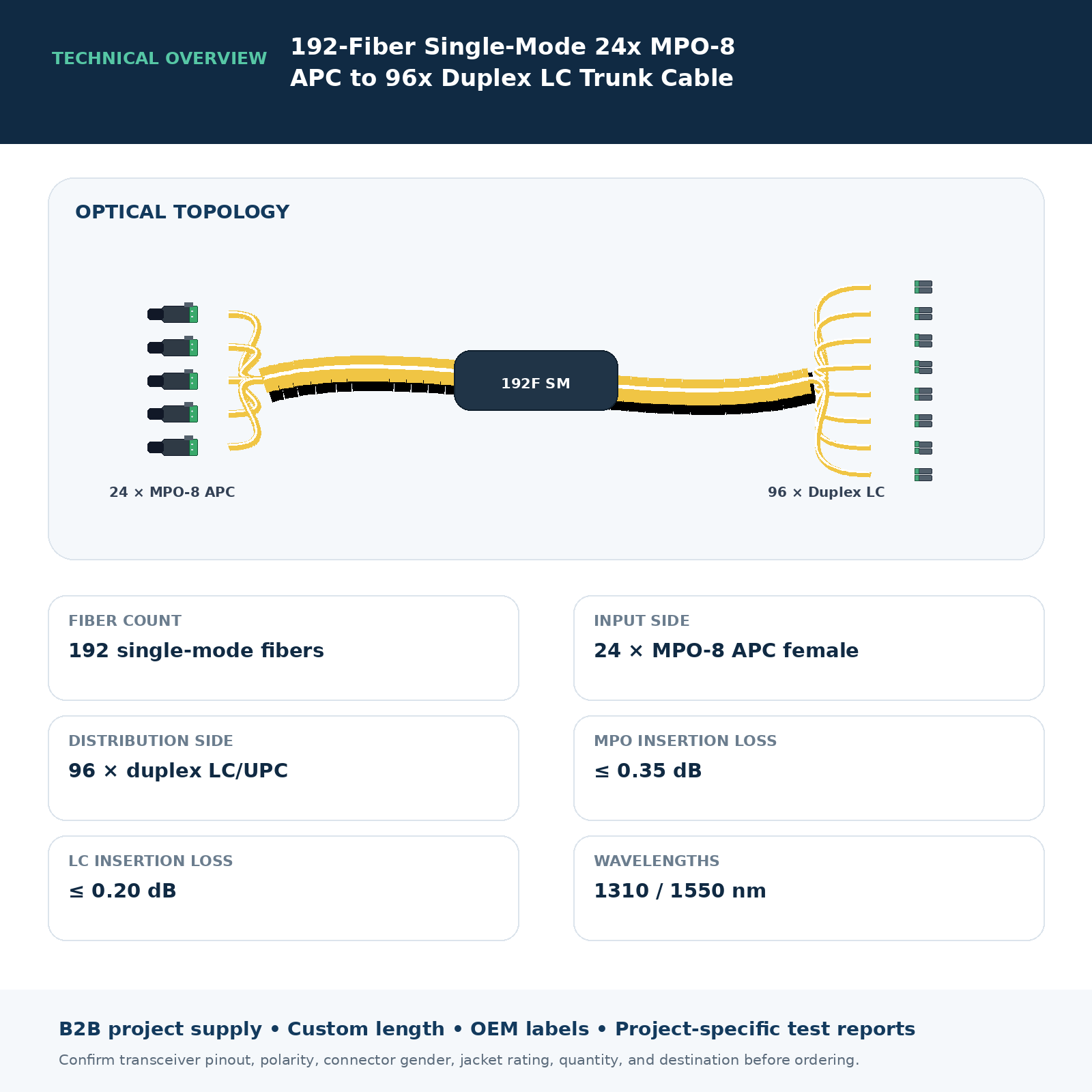

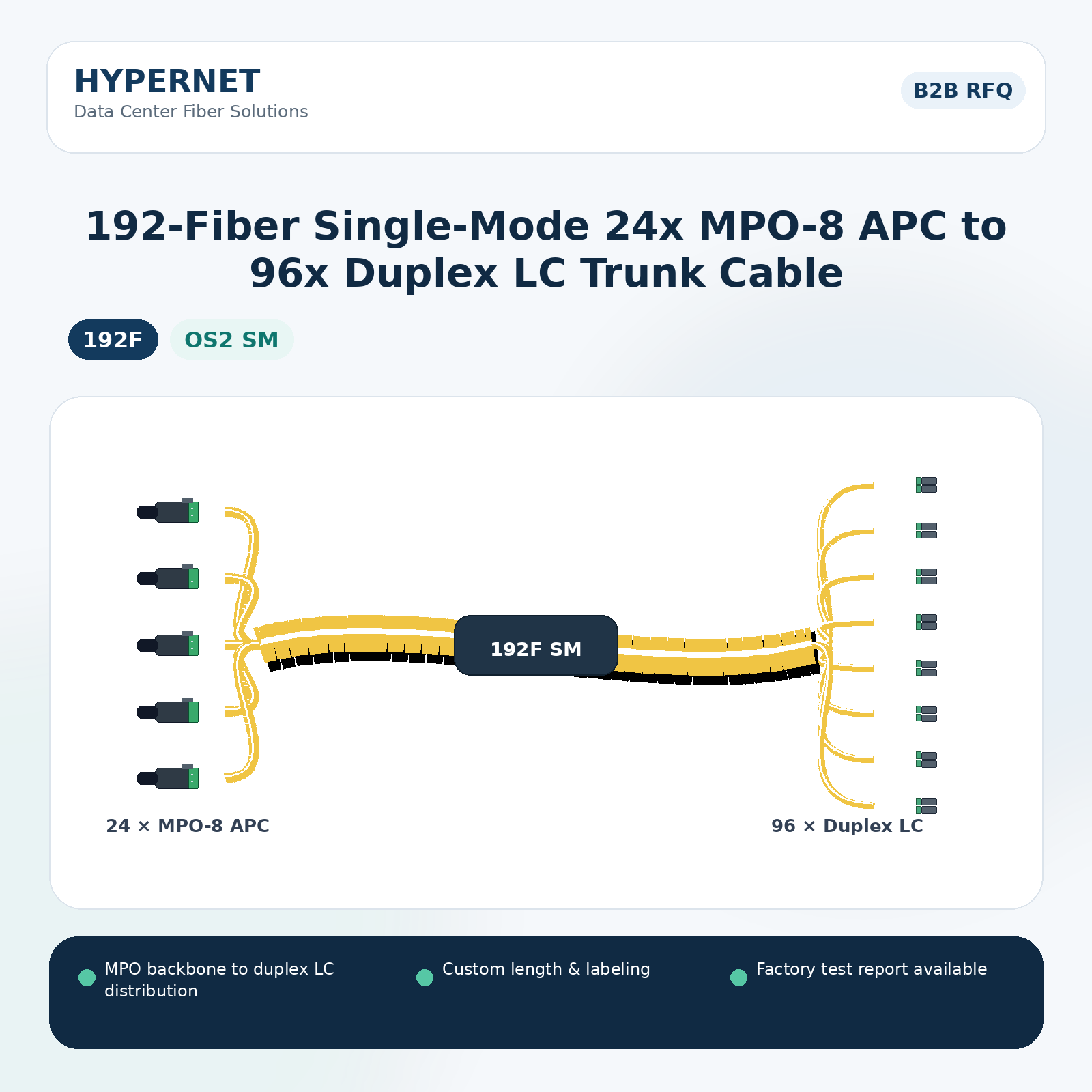

A 192-fiber pre-terminated trunk that converts twenty-four MPO-8 APC interfaces into ninety-six duplex LC/UPC connections for high-density data-center distribution.
Key Features
- 192 single-mode fibers
- Twenty-four MPO-8 APC female connectors on Side A
- Ninety-six duplex LC/UPC connectors on Side B
- Color-coded breakout groups with part-number and serial-number labels
- Factory optical testing at 1310 nm and 1550 nm
Technical Specifications
| Fiber type | Single-mode |
|---|---|
| Total fiber count | 192 |
| Side A | 24 x MPO-8 APC female |
| Side B | 96 x duplex LC/UPC |
| MPO insertion loss | <= 0.35 dB |
| LC insertion loss | <= 0.20 dB |
| MPO return loss | >= 60 dB |
| LC return loss | >= 50 dB |
| Test wavelengths | 1310 nm and 1550 nm |
| Identification | Color-coded rings, part-number labels, and serial-number labels |
Typical Applications
- MPO backbone to LC equipment distribution
- High-density patch-panel and cross-connect systems
- AI and enterprise data-center fiber infrastructure
Ordering Information
Please specify overall length, breakout lengths, connector sequence, quantity, jacket rating, labels, test-report format, and destination country. OEM labeling, custom packaging, and project-specific test reports are available on request.
